Installation and System Requirements
Downloading
Download UgCS Desktop for the required operating system.
Installation
For quick installation follow these steps:
- Run the installer;
- Follow the installation guide;
- Read the license agreement carefully (see End User License Agreement in a separate file);

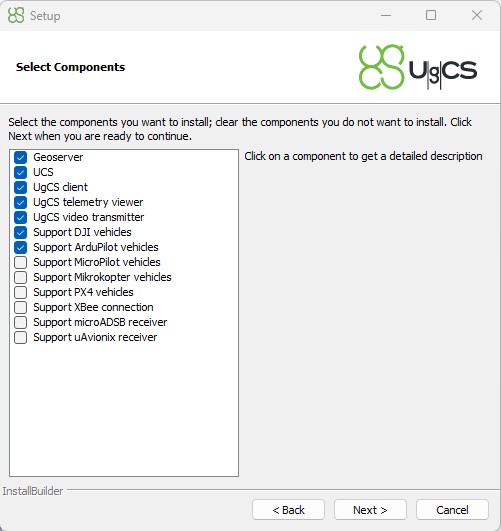

- Choose the required components:
- Geoserver, UCS and UgCS client must be selected as mandatory;
- UgCS telemetry viewer, UgCS video transmitter can be selected optionally;
- Supported autopilot types can be selected as required.
Minimum Recommended System Requirements
- Note the software was not tested on server versions of Windows and OS X. Windows Vista is not supported.
| OS | Windows | macOS |
|---|---|---|
| Operating system | Windows 8; Windows 10* 64-bit | macOS: 10.13 High Sierra or later* 64 bit |
| CPU | Core 2 Duo or Athlon X2 at 2.4 GHz | Core 2 Duo or Athlon X2 at 2.4 GHz |
| Memory | Recommended: 8 GB of RAM | Recommended: 8 GB of RAM |
| Hard drive | 2 GB of free space | 2 GB of free space |
| Graphics hardware | Graphics card with DirectX 11 support (shader model 4.0). Any card made since 2004 should work | Graphics card with DirectX 11 support (shader model 4.0). Any card made since 2004 should work |
| Network | TCP/IPv4 network stack | TCP/IPv4 network stack |
| Screen resolution | Minimum supported screen resolution: 1920x1080 | Minimum supported screen resolution: 1920x1080 |
NOTE: NEVER update software in the field!!!
Useful links
Detailed information on UgCS's various application scenarios https://www.sphengineering.com/news/ugcs-photogrammetry-tool-for-uav-land-survey-missions
Frequently asked questions: https://manuals.ugcs.com/docs/privacy-policy
UgCS YouTube channel: https://www.youtube.com/user/ugcstv
Updated 2 months ago
